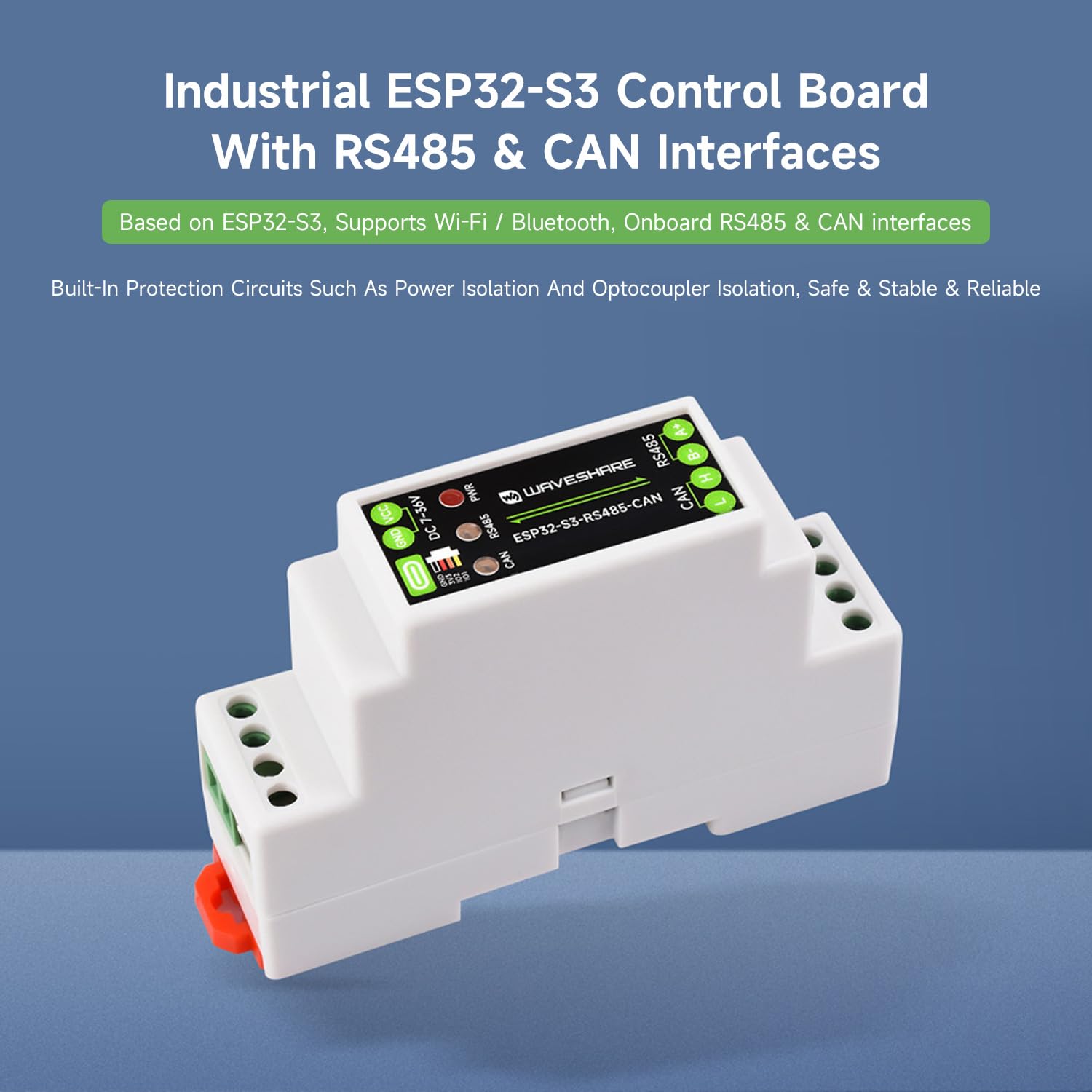

Waveshare Industrial ESP32-S3 Control Board with RS485 and CAN Communication Interfaces, Wi-Fi/BT Support, Built-in Multiple Protection Circuits

Marka: Waveshare
Zgodne urządzenia: Urządzenia przemysłowe z interfejsami RS485 lub CAN
Technologia pamięci RAM: DDR2, DDR3, LPDDR2
Kompatybilne procesory: ESP32-S3
Platforma: Niestandardowe
Nazwa modelu: ESP32-S3-RS485-CAN
Typ głównego złącza zasilania: 24 pin
Dostępne gniazda pamięci: 4
Liczba portów: 4
Całkowita liczba portów USB: 1

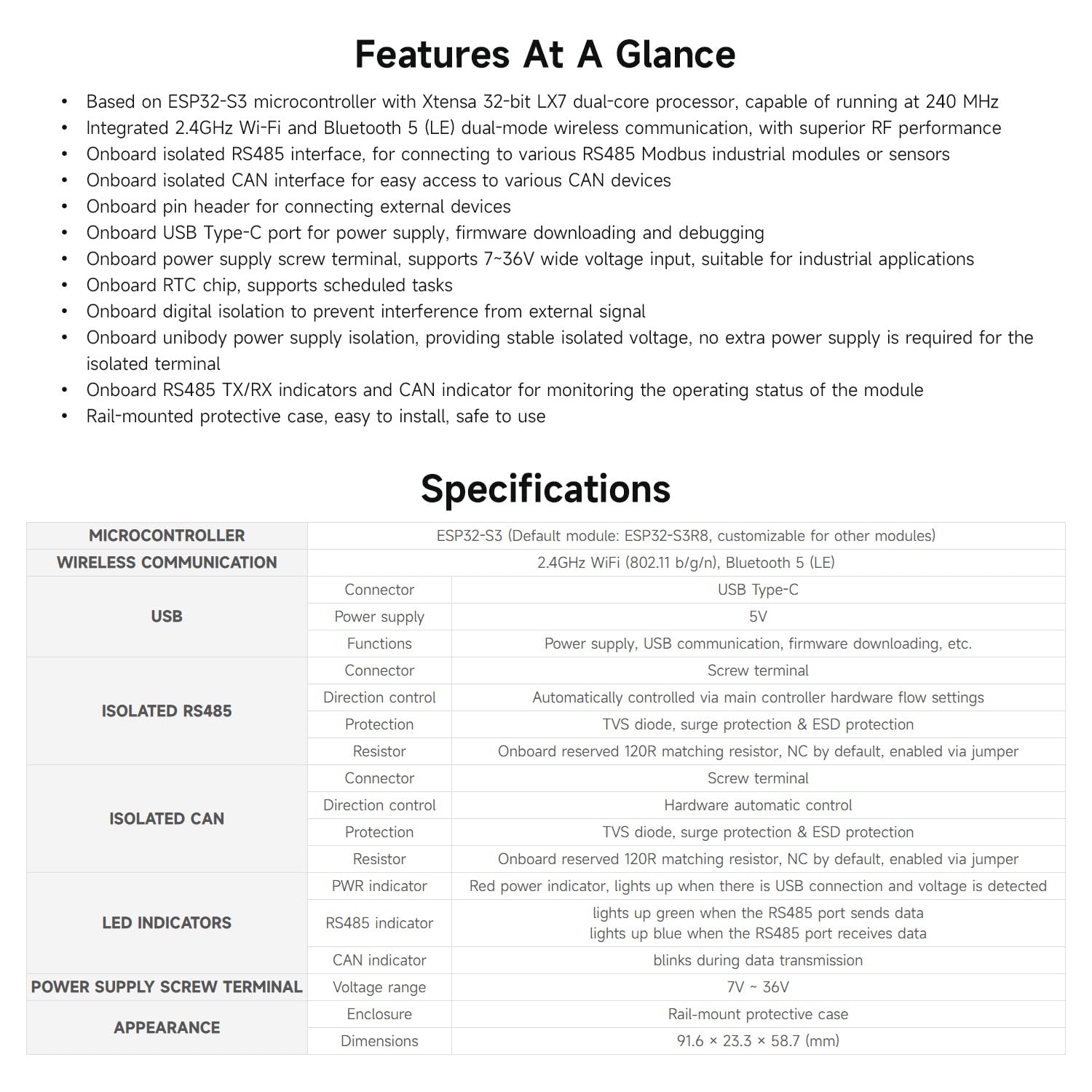

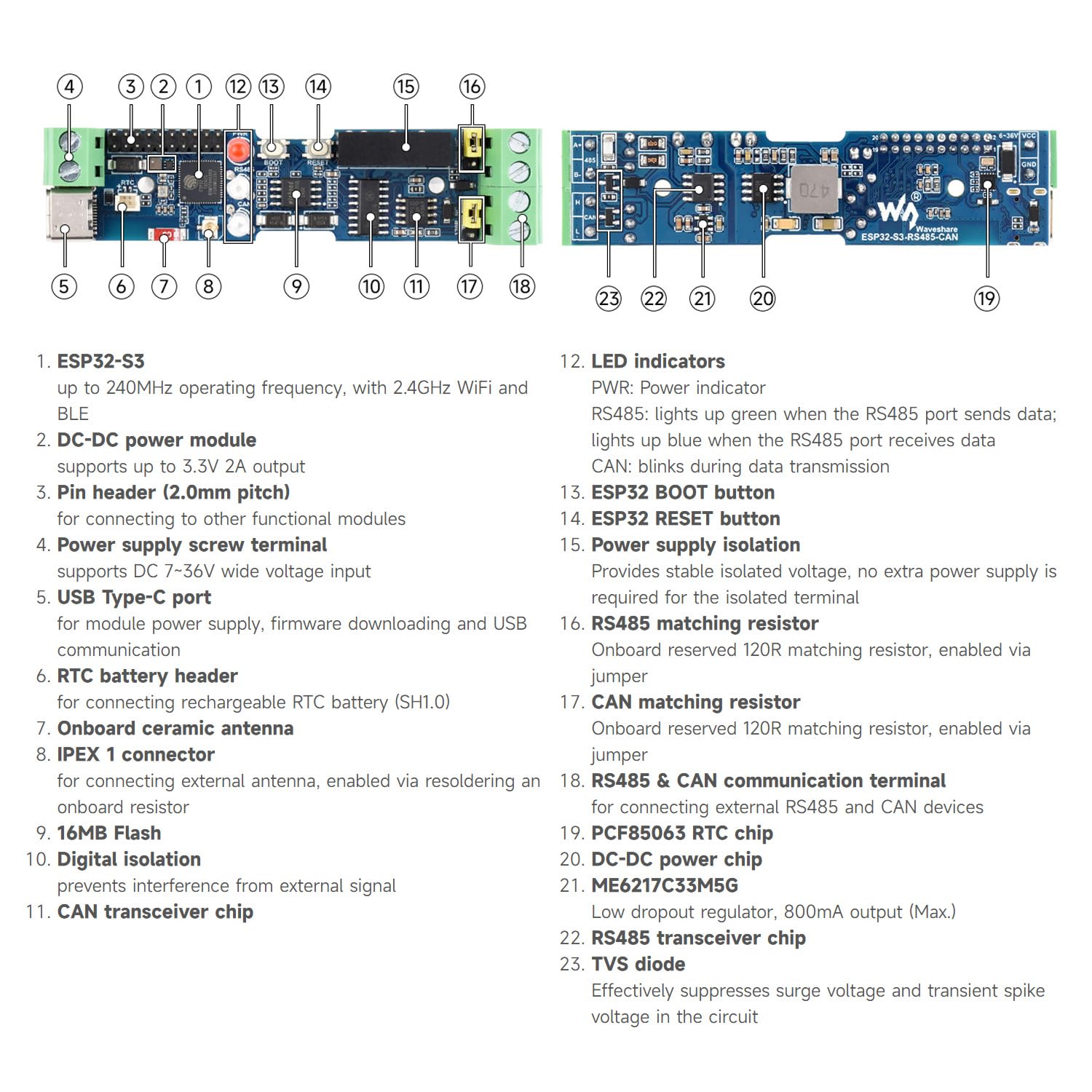

- High-Performance ESP32-S3 Microcontroller: The device is powered by the ESP32-S3 microcontroller featuring an Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, offering powerful performance for complex applications and real-time processing.
- Advanced Dual-Mode Wireless Communication: It integrates 2.4GHz Wi-Fi and BT 5 (LE) dual-mode wireless communication, ensuring reliable, high-speed RF performance for seamless connectivity in a variety of environments.

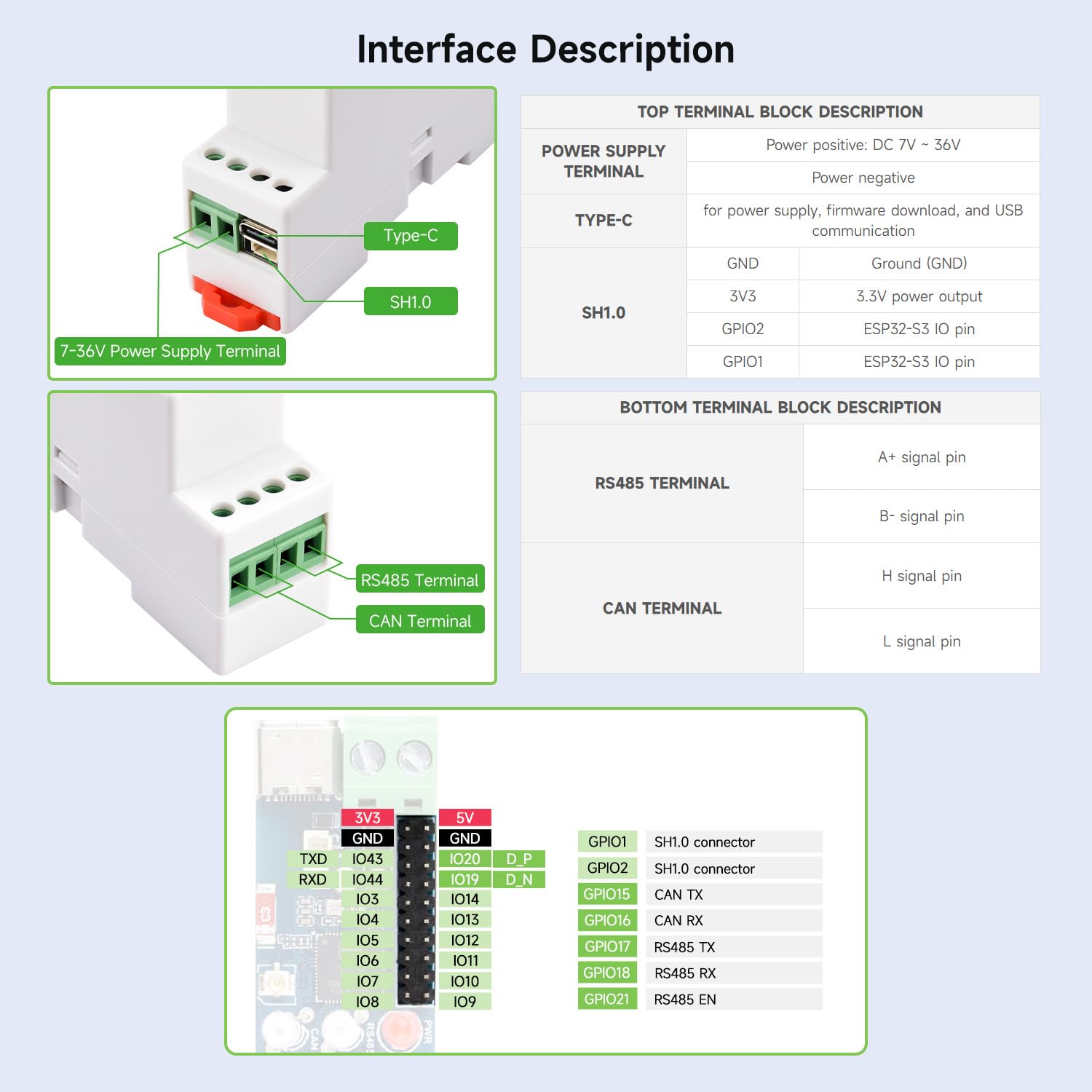

- Multiple Communication Interfaces: The module comes with both an isolated RS485 interface and an isolated CAN interface, enabling easy connection to various industrial devices, such as RS485 Modbus modules or CAN-based devices, for versatile application support.

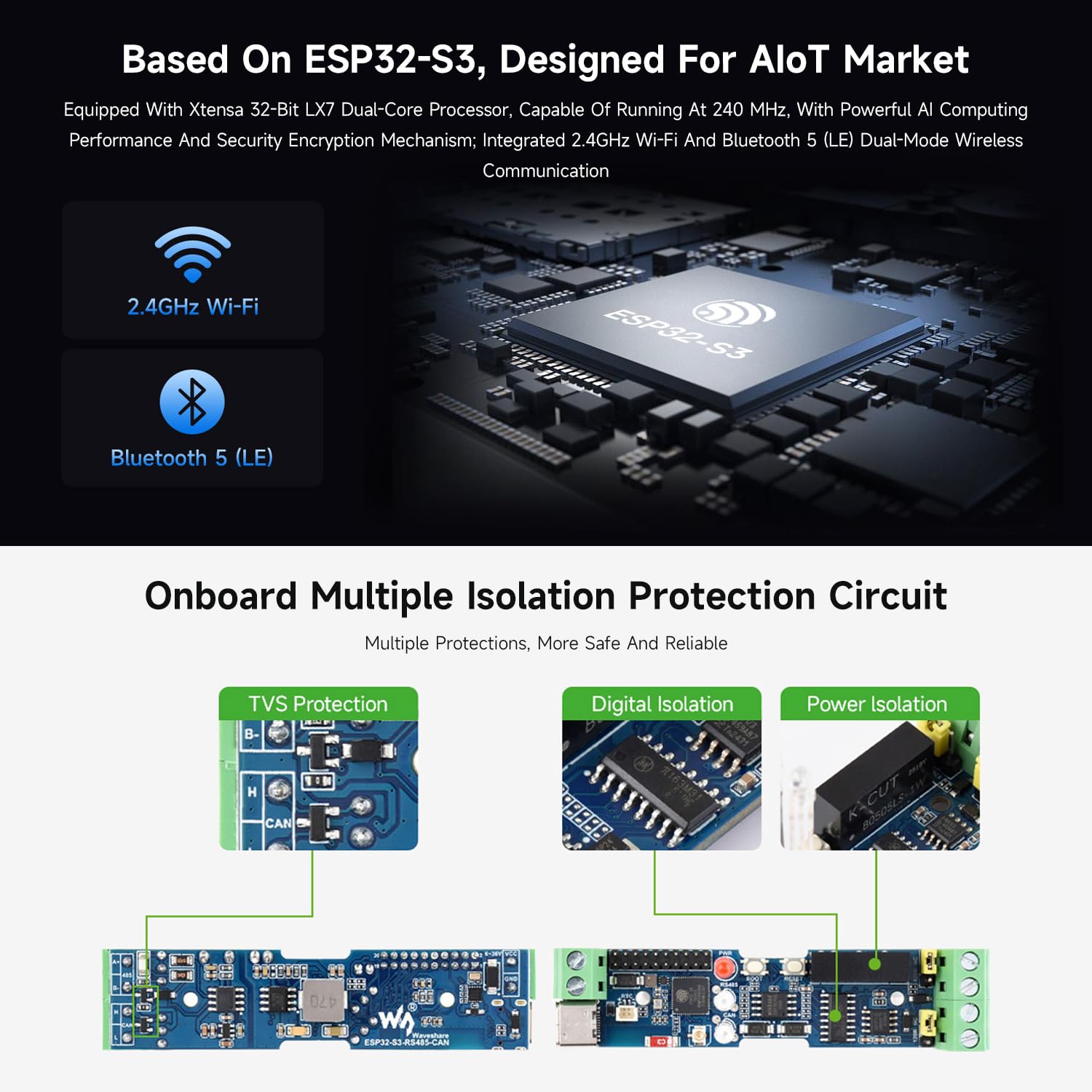

- Flexible Power Supply and Isolation Features: Featuring an onboard power supply screw terminal supporting a wide voltage input range of 7~36V, the device is ideal for industrial environments. It also includes onboard digital isolation, unibody power supply isolation, and optocoupler isolation to prevent external signal and high-voltage interference, ensuring safe and stable operation.

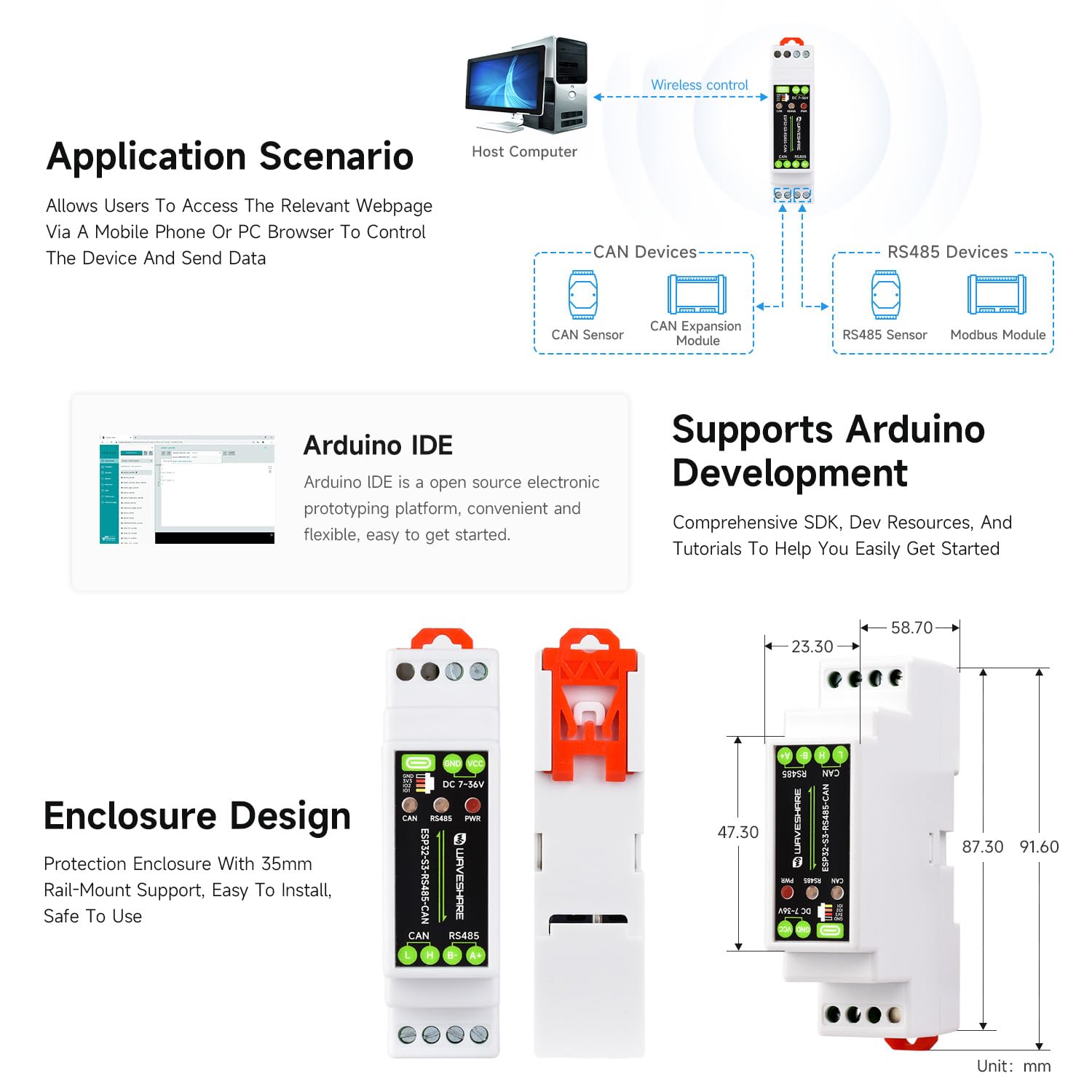

- Convenient Monitoring and Installation: Equipped with RS485 TX/RX and CAN indicators for real-time monitoring of module status, along with an onboard RTC chip for task scheduling, this module is housed in a rail-mounted protective case for easy installation and secure use in industrial applications.
